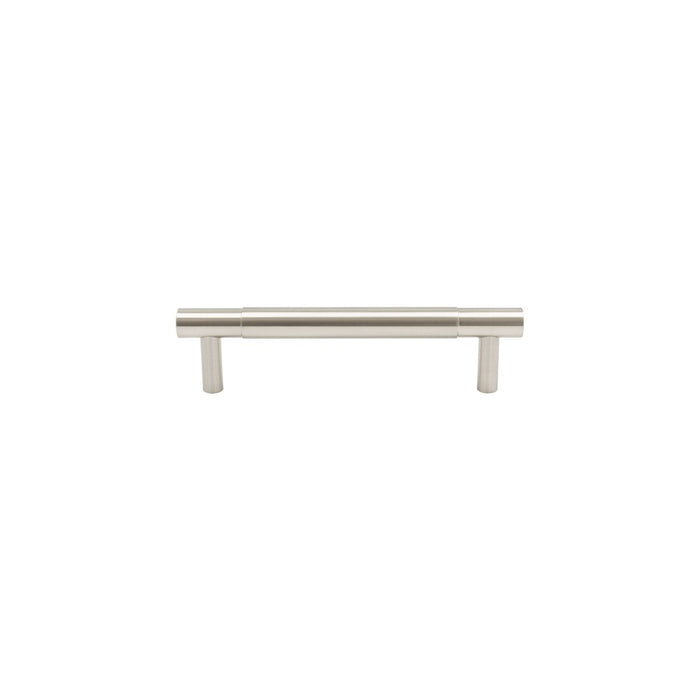

Planar Cabinet Handle - 160mm By Windsor

**3-7 days turnaround time from order for stocked finishes - 3-4 weeks for non-stocked finishes (special orders)**

Introducing our bespoke range of solid brass cabinet handles and knobs. With the multiple handle lengths and complementing round and T-Bar knobs, this collection can be used in a variety of locations including kitchens, wardrobes, bathroom vanities, and cupboards. The three texture options and six finishes ensure there’s the perfect solution to complement any design look for your home or project.

FEATURES AND BENEFITS

• Solid Brass
• 160mm overall length
• 130mm centres
• 15mm diameter bar
• 41mm projection
• Optional round mounting plates included


Specs
> 160mm overall length
> 130mm centres
> 15mm Ø bar
> 41mm projection (44mm with mounting discs)
> Constructed from solid brass
> Optional mounting discs
> Suits door thicknesses of a maximum of 23mm with our standard screw
> For door thicknesses that exceed this alternative fixings will need to be sourced
> Suitable for interior use
Installation
> Pilot holes for screw 5.5mm Ø
> Thru fixings supplied
> Can be installed horizontally or vertically depending on cabinetry
> Can be installed with or without the supplied mounting discs
> For retro-fitting cabinetry backing plate can be ordered separately see below product codes.

Backing Plate Codes
6526 - 160mm
6527 - 260mm
6528 - 360mm
